Product Summary
The LP141WP1-TLA3 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent Lamp (CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally white mode. This TFT-LCD has 14.1 inches diagonally measured active display area with WXGA+ resolution(900 vertical by 1440 horizontal pixel array). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors. The LP141WP1-TLA3 has been designed to apply the interface method that enables low power, high speed, low EMI. The LP141WP1-TLA3 is intended to support applications where thin thickness, low power are critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the LP141WP1-TLA3 characteristics provide an excellent flat display for office automation products such as Notebook PC.
Parametrics
LP141WP1-TLA3 absolute maximum ratings: (1)Power Input Voltage: -0.3 to 4.0 V; (2)Operating Temperature: 0 to 50 ℃; (3)Storage Temperature: -20 to 60 ℃; (4)Operating Ambient Humidity: 10 to 90 %RH; (5)Storage Humidity: 10 to 90 %RH.
Features
LP141WP1-TLA3 features: (1)Power Consumption: Total 6.0 Watt(Typ.) @ LCM circuit 1.9Watt(Typ.), B/L input 4.1Watt(Typ.); (2)Weight: 435 g (Max.), 425g(Typ.); (3)Display Operating Mode: Transmissive mode, normally white; (4) Pixel Pitch: 0.2109 mm × 0.2109 mm; (5)Outline Dimension: 320 (H) × 206(V) × 5.5(D) mm [Max].

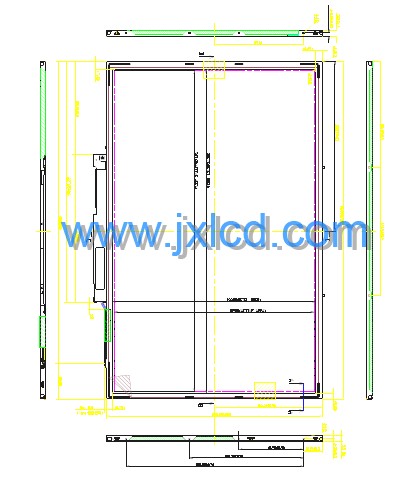

Diagrams
