Product Summary
The LP133WX2 TLA1 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The matrix employs a-Si Thin Film Transistor as the active element. The LP133WX2 TLA1 is a transmissive type display operating in the normally white mode. This TFT-LCD has 13.3 inches diagonally measured active display area with WXGA resolution(1280 horizontal by 800 vertical pixel array). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors. The LP133WX2 TLA1 has been designed to apply the interface method that enables low power, high speed, low EMI.
Parametrics
LP133WX2 TLA1 absolute maximum ratings: (1)Power Input Voltage: -0.3 to 4V; (2)Operating Temperature: 0 to 50℃; (3)Storage Temperature: -20 to 60℃; (4)Operating Ambient Humidity: 10 to 90%RH; (5)Storage Humidity: 10 to 90%RH.
Features
LP133WX2 TLA1 features: (1)Active Screen Size: 13.3 inches diagonal; (2)Outline Dimension: 296.5 (H, Max.) × 203.0 (V, Max.) × 3.20(Up) / 3.35(Down) (D, Max.) mm; (3)Pixel Pitch: 0.2235 mm × 0.2235 mm; (4)Pixel Format: 1280 horiz. by 800 vert. Pixels RGB strip arrangement; (5)Color Depth: 6-Color Depth bit, 262,144 colors; (6)Power Consumption: 0.9W (Logic) / 3.2W(LED); (7)Weight: 235g(Max.); (8)Display Operating Mode: Transmissive mode, normally white.

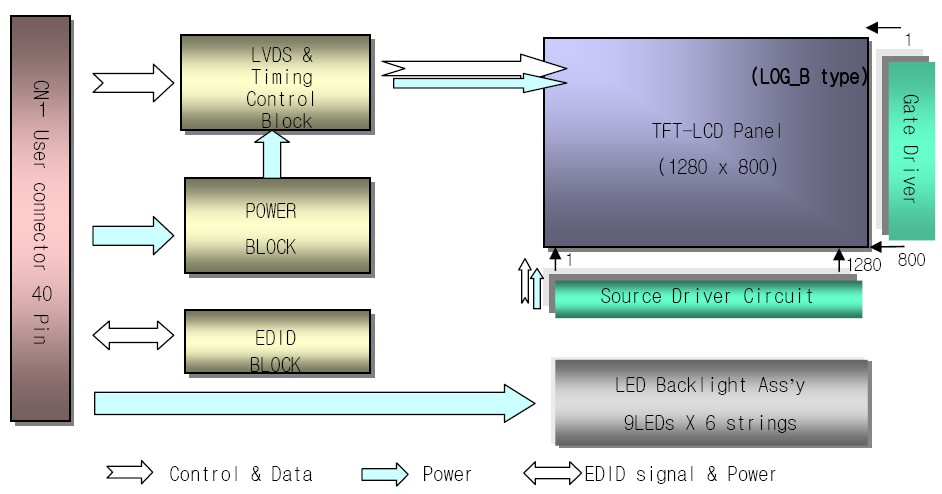

Diagrams
