Product Summary
HannStar Display model HSD100IFW1-A04 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 10 (17:10) inch diagonally measured active display area with WSVGA (1024 horizontal by 600 vertical pixel) resolution. The applications of the HSD100IFW1-A04 include Mobile NB, Digital Photo frame and Display terminal for AV application.
Parametrics
HSD100IFW1-A04 absolute maximum ratings: (1)LED Power Supply voltage: -0.3 to 6.0 V; (2)Logic Supply voltage: -0.3 to 6.0 V; (3)Operating Temperature: 0 to 50 ℃; (4)Storage Temperature: -20 to 60 ℃.
Features
HSD100IFW1-A04 features: (1)10 (17:10 diagonal) inch configuration; (2)One channel LVDS interface; (3)256K color by 6 bit R.G.B signal input; (4)RoHS Compliance.

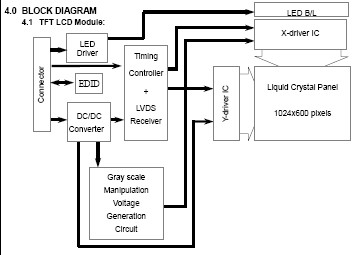

Diagrams
