Product Summary
The N121I1 -L01 is a TFT LCD.
Parametrics
CLAA156WA11A absolute maximum ratings: (1)Power Supply Voltage for LCD: 0 to 4.0 V; (2)LED Driver Iuput Voltage: 7.5 to 21 V; (3)LED Driver Input Current: TBD mA; (4)PWM Frequency: TBD KHz; (5)LED Forward Voltage: 3.0 to 3.5 V; (6)LED Forward Current: 30 mA; (7)Operation Temperature: 0 to 50 ℃; (8)Storage Temperature: -25 to 65 ℃.
Features
CLAA156WA11A features: (1)LCD power voltage: 3.0 to 3.6 V ; (2)LCD power current: 400 mA ; (3)Rush current: 2 A; (4)Differential input voltage tolerance: 35mW.

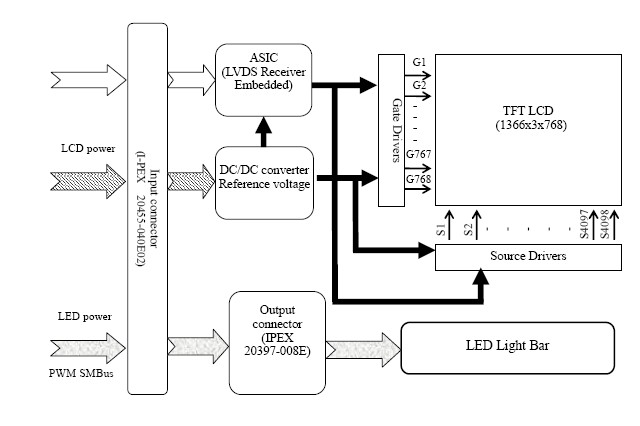

Diagrams
