Product Summary
The CLAA101NB03A is 10.1” color TFT-LCD (Thin Film Transistor Liquid Crystal Display) module. The CLAA101NB03A is composed of LCD panel, LVDS driver ICs, control circuit and backlight. By applying 6 bit digital data, 1024×RGB (3) ×600, 262K-color images are displayed on the 10.1” diagonal screen.
Parametrics
CLAA101NB03A absolute maximum ratings: (1)Power Supply Voltage for LCD VCC: 0 to 4.0 V; (2)Operation Temperature Top: 0 to 50℃; (3)Storage Temperature Tstg: -25 to 65℃; (4)LCD POWER VOLTAGE VCC: 3.0 to 3.6 V; (5)LCD POWER CURRENT ICC: 210mA; (6)Rush CRRENT Irush: 2 A.
Features
CLAA101NB03A features: (1)LED Driver Iuput Voltage VBL: 5 to 21V; (2)LED Driver Input Current IBL+: 500mA; (3)Forward Voltage VF: 2.95 to 3.5V; (4)Forward Current IF: 19.5 to 20.5mA; (5)Power consumption PLED: 1.80W; (6)PWM Frequency PWM_BL: 180 to 220Hz.

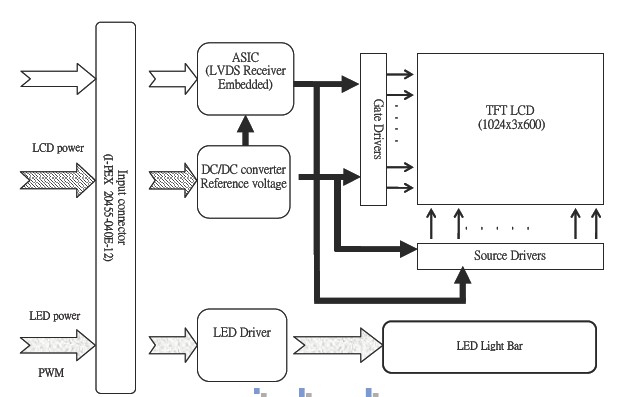

Diagrams
