Product Summary

CLAA101NB01 is 25.5cm (10.1”) color TFT-LCD (Thin Film Transistor Liquid Crystal Display) module composed of LCD panel, driver ICs, control circuit and LED backlight. By applying 1024×600 images are displayed on the 10.1” diagonal screen. Display 262K colors by 6 Bit R.G.B signal input. Use 3.3 voltages to drive the power of LCD system.

Parametrics

CLAA101NB01 absolute maximum ratings: (1)Power Supply Voltage: -0.3 to 4.0 V; (2)LED Supply Voltage: -0.3 to 25.0 V; (3)Static Electricity: 200V; (4)ICC Rush Current: 1 A ; (5)Operation Temperature: 0 to 50 ℃; (6)Storage Temperature: -20 to 60 ℃.

Features

CLAA101NB01 features: (1)Power Supply Voltage For LCD: 3.0 to 3.6 V ; (2)Power Supply Voltage For LED: 5 to 19 V; (3)Input Voltage: 1.08 to 1.32 V; (4)ADJ Input Voltage: 3.0 to 3.3 V.

Diagrams

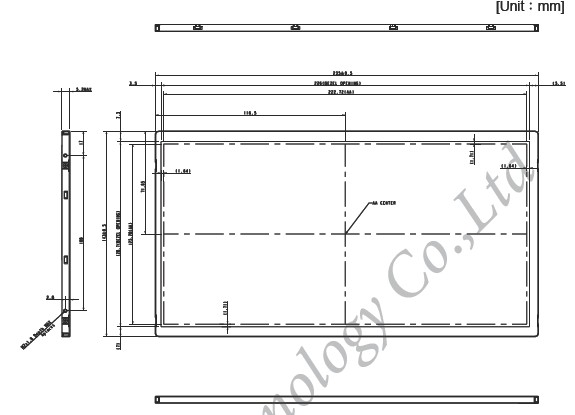

CLAA101NB01 dimension
