Product Summary

The BT156GW01 V.3 is a LCD module.

Parametrics

BT156GW01 V.3 absolute maximum ratings: (1)Power input voltage VCC: - 0.3 to 4.0 V At 25℃; (2)Signal input voltage VIN: - 0.3 to 4.0 V At 25℃; (3)Operating temperature TOP: 0 to 50℃; (4)Storage temperature TST: - 20 to 60℃.

Features

BT156GW01 V.3 features: (1)Power input voltage VCC: 3 to 3.6 V; (2)Permissive power input ripple VRF: 0.1 V; (3)Power input current ICC: 360mA; (4)Power consumption PC: 1.2W.

Diagrams

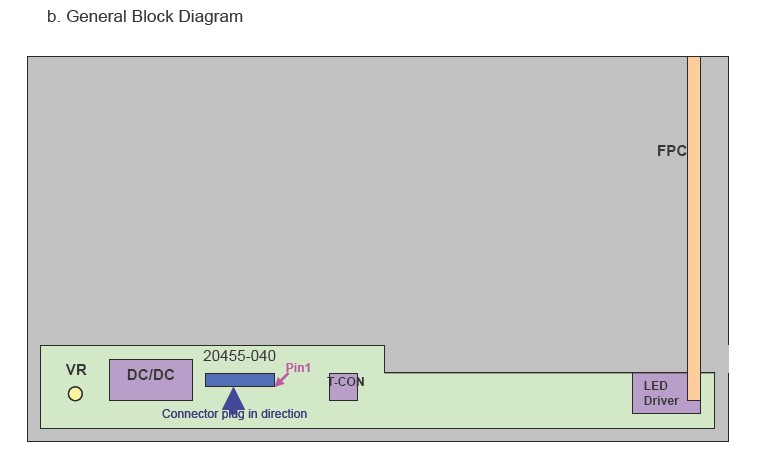

BT156GW01 V.3 block diagram
