Product Summary

The B140RW02 V1 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format of the B140RW02 V1 is intended to support the 16:9 HD, 1600(H) x900(V) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are LVDS interface compatible. The B140RW02 V1 is designed for a display unit of notebook style personal computer and industrial machine.

Parametrics

B140RW02 V1 absolute maximum ratings: (1)Logic/LCD Drive Voltage VinL: -0.3 to +4.0V; (2)Operating Temperature TOP: 0 to +50℃; (3)Operation Humidity HOP: 5 to 95%RH; (4)Storage Temperature TST: -20 to +60℃; (5)Storage Humidity HST: 5 to 95%RH.

Features

B140RW02 V1 features: (1)VDD Logic/LCD Drive Voltage: 3.0 to 3.6V; (2)PDD VDD Power: 1.5 Watt; (3)IDD IDD Current: 454mA; (4)IRush Inrush Current: 2000mA; (5)VDDrp Allowable Logic/LCD Drive Ripple Voltage: 100mVp-p.

Diagrams

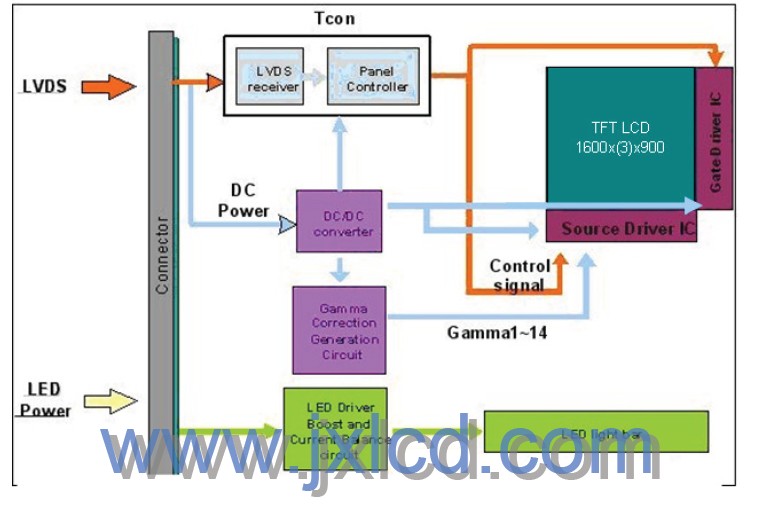

B140RW02 V1 block diagram
