Product Summary

The B133XW01 V7 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD pane a driver circuit, and LED backlight system. The screen format is intended to support the 16:9 HD, 1366(H) × 768(V) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are LVDS interface compatible. The B133XW01 V7 is designed for a display unit of notebook style personal computer and industrial machine.

Parametrics

B133XW01 V7 absolute maximum ratings: (1)Logic/LCD Drive Voltage, Vin: -0.3 to +4.0 Volt; (2)Operating Temperature, TOP: 0 to +50 ℃ ; (3)Operation Humidity, HOP: 5 to 95 %RH; (4)Storage Temperature, TST: -20 to +60 ℃; (5)Storage Humidity, HST: 5 to 95 %RH.

Features

features: (1)VDD, Logic/LCD Drive Voltage: 3.0 to 3.6 Volt; (2)PDD, VDD Power: 3.9 Watt; (3)IDD, IDD Current: 300 mA; (4)IRush, Inrush Current: 2000 mA; (5)VDDrp, Allowable Logic/LCD Drive Ripple Voltage: 100 mV.

Diagrams

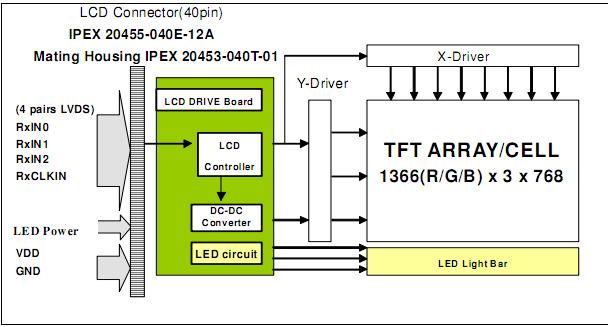

 B133XW01 V7 block diagram
