Product Summary
The B133EW07 V2 is a color active matrix liquid crystal display composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the WXGA (1280(H) x 800(V)) screen and 262k colors (RGB 6-bits data driver) without LED backlight driving circuit. All input signals are LVDS interface compatible. The B133EW07 V2 is designed for a display unit of notebook style personal computer and industrial machine.
Parametrics
B133EW07 V2 absolute maximum ratings: (1)logic/LCD drive voltage: -0.3 to 4V; (2)operating temperature: 50℃; (3)operation humidity: 5 to 95%RH; (4)storage temperature: -20 to 60℃; (5)storage humidity: 5 to 95%RH.
Features
B133EW07 V2 features: (1)Logic/LCD drive voltage: 3.6V; (2)VDD power: 0.9W; (3)IDD current: 250mA; (4)inrush current: 1500mA; (5)allowable logic: 100mV.

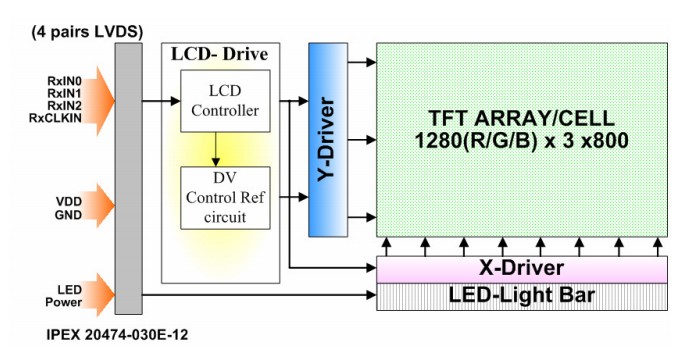

Diagrams
