Product Summary

The B101EW05 V4 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the 16:10 WXGA, 1280(H) x800(V) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are LVDS interface compatible. The B101EW05 V4 is designed for a display unit of notebook style personal computer and industrial machine.

Parametrics

B101EW05 V4 absolute maximum ratings: (1)Logic/LCD Drive Voltage Vin -0.3 to +4.0V; (2)Touch Sensor Power Voltage Vin 3.1 to 6V; (3)Operating Temperature TOP: 0 to +50℃; (4)Operation Humidity HOP: 5 95%RH; (5)Storage Temperature TST: -20 to +60℃; (6)Storage Humidity HST: 5 to 95%RH.

Features

B101EW05 V4 features: (1)VDD Logic/LCD Drive Voltage: 3.0 to 3.6V; (2)PDD VDD Power: 0.7W; (3)IDD IDD Current: 212mA; (4)IRush Inrush Current: 2000mA; (5)VDDrp Allowable Logic/LCD Drive Ripple Voltage: 100mV.

Diagrams

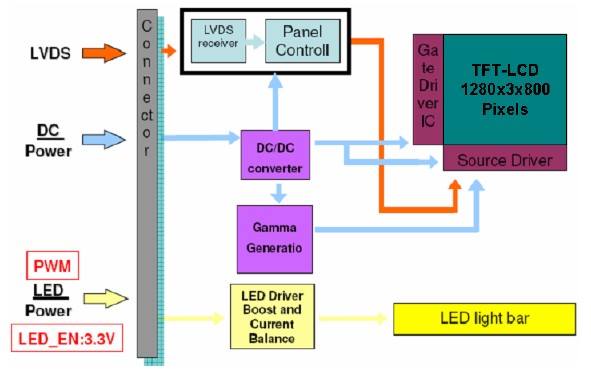

B101EW05 V4 block diagram
