Product Summary

The B101EW04 V0 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format of the B101EW04 V0 is intended to support 1280(H) x 800(V) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are LVDS interface compatible. The B101EW04 V0 is designed for a display unit of notebook style personal computer and industrial machine.

Parametrics

B101EW04 V0 absolute maximum ratings: (1)Logic/LCD Drive Voltage Vin: -0.3 to +4.0V; (2)Operating Temperature TOP: 0 to +50℃; (3)Operation Humidity HOP: 5 to 95%RH; (4)Storage Temperature TST: -20 to +60℃; (5)Storage Humidity HST: 5 to 95%RH.

Features

B101EW04 V0 features: (1)Vth Differential Input High Threshold (Vcm=+1.2V): 100mV; (2)Vtl Differential Input Low Threshold (Vcm=+1.2V): -100mV; (3)VID Differential Input Voltage: 100 to 600mV; (4)Differential Input Common Mode Voltage: 1.125 to 1.375V.

Diagrams

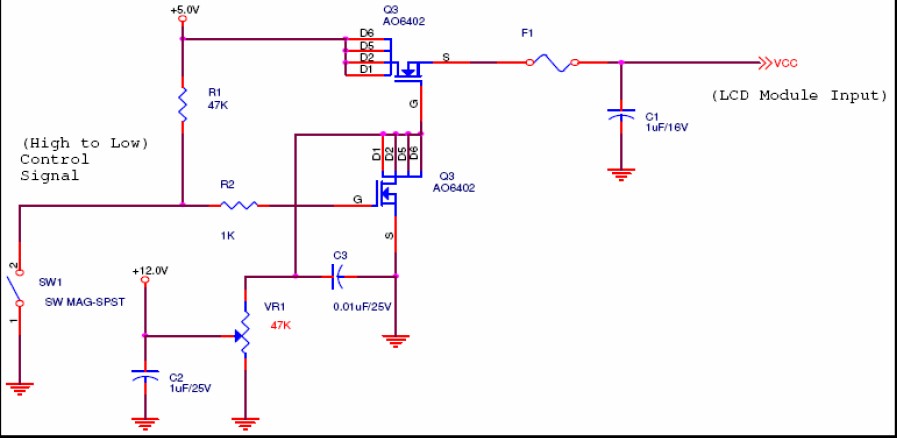

B101EW04 V0 block diagram
