Product Summary

The B101AW03 V.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the WSVGA (1024(H) x 600(V)) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are LVDS interface compatible. The B101AW03 V.0 is designed for a display unit of notebook style personal computer and industrial machine.

Parametrics

B101AW03 V.0 absolute maximum ratings: (1)Logic/LCD Drive Vin: -0.3 to +4.0 V; (2)Operating Temperature TOP: 0 to +50℃; (3)Operation Humidity HOP: 10 to 90%RH; (4)Storage Temperature TST: -20 to +60℃; (5)Storage Humidity HST: 10 to 90%RH.

Features

B101AW03 V.0 features: (1)VDD Logic/LCD Drive Voltage: 3.0 to 3.6 V; (2)PDD VDD Power: 0.50 W; (3)IDD IDD Current: 150mA; (4)IRush Inrush Current: 1500 mA; (5)VDDrp Allowable Logic/LCD Drive Ripple Voltage: 100 mV p-p.

Diagrams

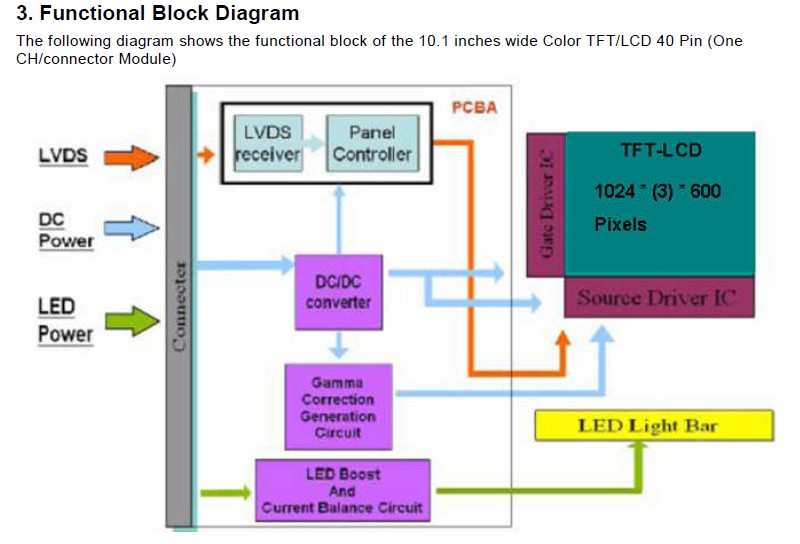

B101AW03 V.0 block diagram
