Product Summary

The 156XW02 V6 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the 16:9 HD, 1366(H) x768(V) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are LVDS interface compatible. The 156XW02 V6 is designed for a display unit of notebook style personal computer and industrial machine.

Parametrics

156XW02 V6 absolute maximum ratings: (1)Logic/LCD Drive Vin: -0.3 to +4.0 V; (2)Operating Temperature TOP: 0 to +50℃; (3)Operation Humidity HOP: 5 to 95%RH; (4)Storage Temperature TST: -20 to +60℃; (5)Storage Humidity HST: 5 to 95%RH.

Features

156XW02 V6 features: (1)VDD Logic/LCD Drive Voltage: 3.0 to 3.6 V; (2)PDD VDD Power: 1.2 W; (3)IDD IDD Current: 400 mA; (4)IRush Inrush Current: 1500 mA; (5)VDDrp Allowable Logic/LCD Drive Ripple Voltage: 100 mV p-p; (6)VTH Differential Input High Threshold (Vcm=+1.2V): 100mV; (7)VTL Differential Input Low Threshold (Vcm=+1.2V): 100 mV; (8)|VID| Differential Input Voltage: 100 to 600 mV; (9)VCM Differential Input Common Mode Voltage: 1.125 to 1.375 V.

Diagrams

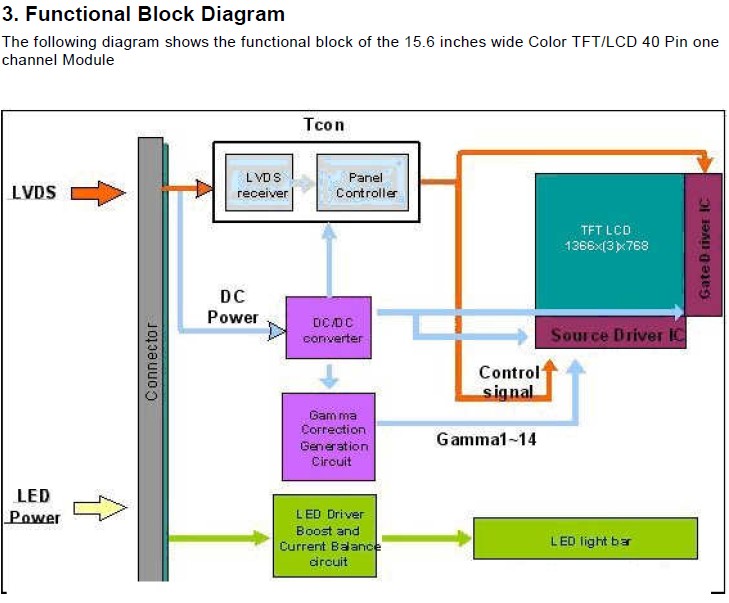

156XW02 V6 block diagram
