Product Summary

The 121PHW1-A00 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. The 121PHW1-A00 is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 16 (16:9) inch diagonally measured active display area with HD (1366 horizontal by 768 vertical pixel) resolution. The 121PHW1-A00 is applicated for NB.

Parametrics

121PHW1-A00 absolute maximum ratings: (1)Logic Supply voltage VDD: -0.3 to 6.0 V; (2)Operating Temperature Topa: 0 to 50℃; (3)Storage Temperature Tstg: -20 to 60℃.

Features

121PHW1-A00 features: (1)12.1 (16:9 diagonal) inch configuration; (2)One channel LVDS interface; (3)262K color by 6 bit R.G.B signal input; (4)RoHS Compliance; (5)Halogen Free.

Diagrams

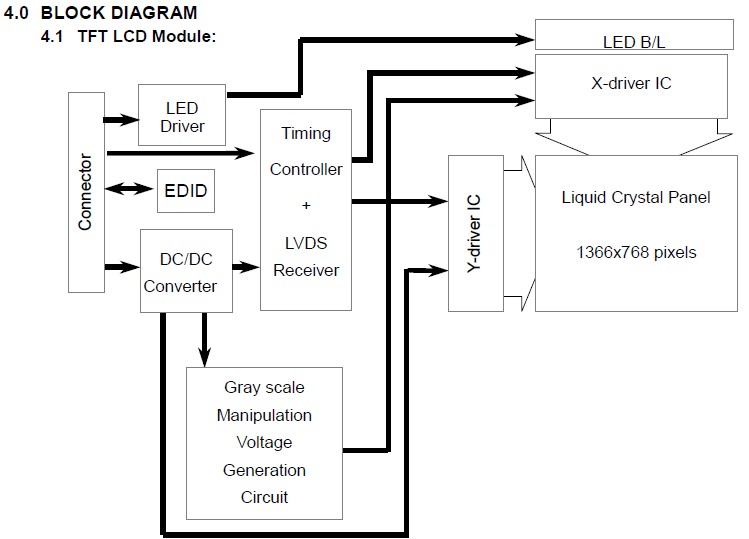

121PHW1-A00 block diagram
