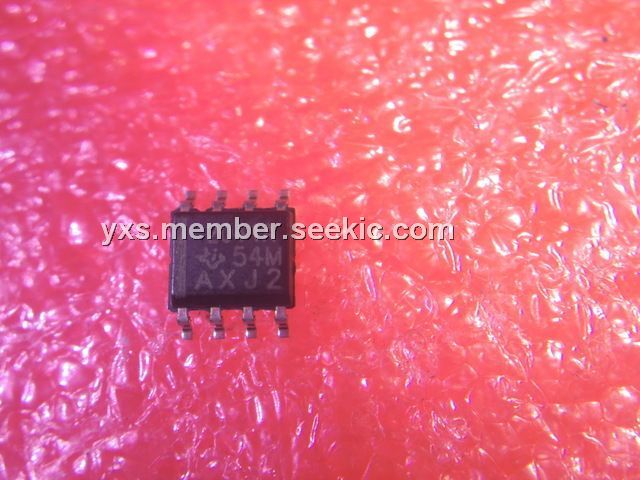

TPS2041A

900MA, 8-SOIC, TPS2041A, power-distribution switch, 2.7 V, 70-mΩ

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.89~2.85 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.89~2.85

PartNumber:: TPS2041A

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-20

From Other Seller

Part Number:TPS2041A
US $1.89 - 2.85
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

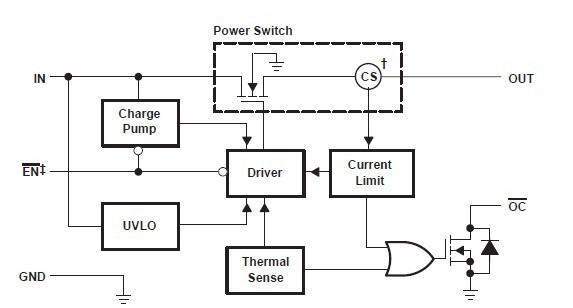

The TPS2041A is a current limited, power-distribution switch which is intended for applications where heavy capacitive loads and short circuits are likely to be encountered. The TPS2041A incorporates 70-mW N-channel MOSFET power switches for power-distribution systems that require multiple power switches in a single package. Each TPS2041A switch is controlled by a logic enable input. Gate driver is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V.

Parametrics

TPS2041A absolute maximum ratings: (1)Input voltage range: -0.3 V to 6 V; (2)Output voltage range: -0.3 V to 6 V; (3)Input voltage range: -0.3 V to 6 V; (4)Voltage range: -0.3 V to 6 V; (5)Continuous output current: Internally limited; (6)Continuous total power dissipation: See Dissipation Rating Table; (7)Operating virtual junction temperature range: 0 to 125℃; (8)Storage temperature range: -65 to 150℃; (9)Lead temperature soldering 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (10)Electrostatic discharge (ESD) protection: Human body model MIL-STD-883C, 2 kV.

Features

TPS2041A features: (1)80-mΩ High-Side MOSFET switch; (2)500-mA Continuous Current; (3)Thermal and Short-Circuit Protection; (4)Accurate Current Limit (0.75 A min, 1.25 A max); (5)Operating Range: 2.7 V to 5.5 V; (6)2.5-ms Typical Rise Time; (7)Undervoltage Lockout; (8)Deglitched Fault Report (OC); (9)No OC Glitch During Power Up; (10)Maximum Standby Supply Current: 10 μA (Single, Dual) or 20 μA (Triple, Quad); (11)Bidirectional Switch; (12)Ambient Temperature Range: -40 to 85℃; (13)ESD Protection.
