Product Summary

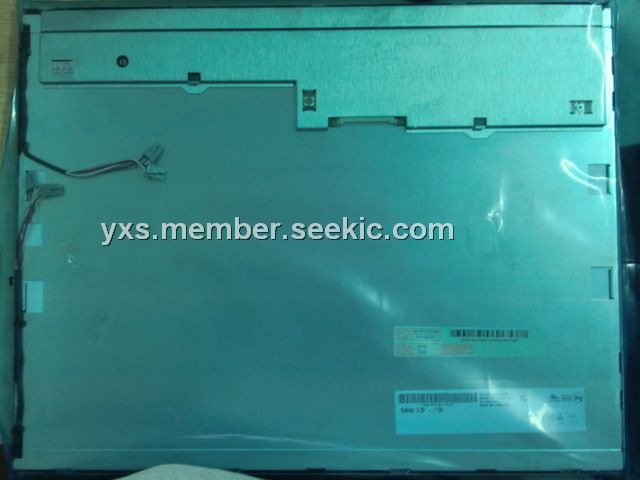

The T150XG01 V2 is a 15 inch color TFT-LCD TV module. This specification applies to the 15.0 inch Color TFT-LCD Module T150XG01. This module supports the XGA (1024(H) × 768(V)) screen format and 16.2M colors (6-bits + FRC). All input signals are 1 channel LVDS interface compatible. This module T150XG01 V2 is without any inverter card for backlight. The applications of the T150XG01 V2 are Person TV, Multi-function media and Video Game Console.

Parametrics

T150XG01 V2 absolute maixmum ratings: (1)Logic/LCD Drive Voltage VDD: -0.3 to +3.6 Volt; (2)Input Voltage of Signal Vin: -0.3 to +3.6 Volt; (3)CCFL Current ICFL: +2.5 to +8.5 mArm; (4)Operating Temperature TOP: 0 to +50 ℃; (5)Storage Temperature HST: -20 to +60 ℃; (6)Operating Humidity HOP: 20 to 85 %RH; (7)Storage Humidity HST: 10 to 90 %RH; (8)Vibration: 1/10-200 G/Hz; (9)Shock: 50/20 G/ms.

Features

T150XG01 V2 features: (1)XGA 1024(H) × 768(V) resolution; (2)Fast response Time (12ms); (3)50,000 hours lamp life; (4)4 CCFL (Cold Cathode Fluorescent Lamp); (5)High brightness, High contrast ratio; (6)Wide viewing angle; (7)Low power consumption; (8)Green Design.

Diagrams

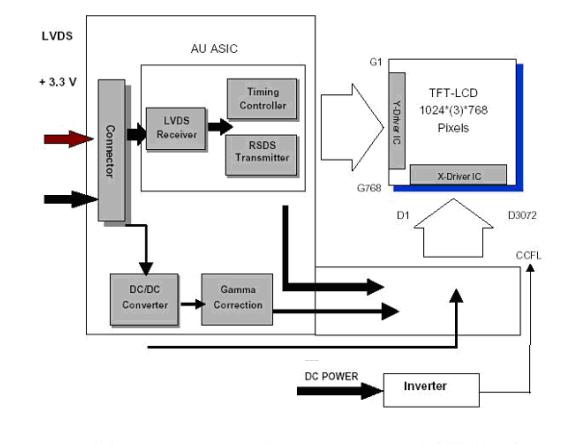

T150XG01 V2 block diagram
