Product Summary

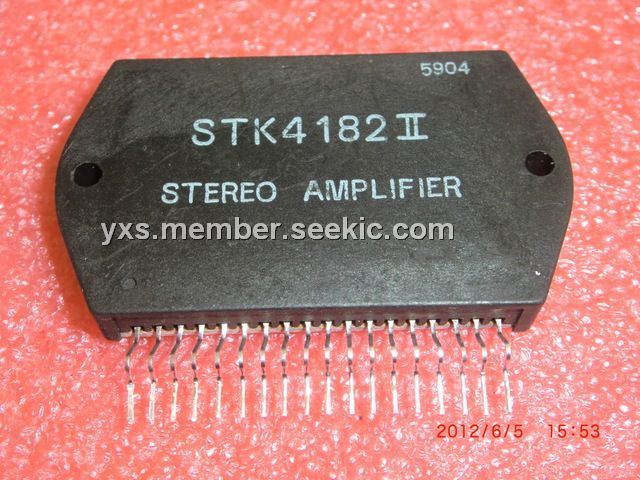

The STK4182II is an AF Power Amplifier.
Parametrics
STK4182II absolute maximum ratings: (1)Maximum supply voltage VCC max: ±50 V; (2)Thermal resistance θj-c: 1.8℃/W; (3)Junction temperature Tj: 150℃; (4)Operating substrate temperature Tc: 125℃; (5)Storage temperature Tstg: –30 to +125℃; (6)Available time for load short-circuit ts: 2 s.
Features
STK4182II features: (1)The STK4102II series (STK4182II) and STK4101V series (high-grade type) are pin-compatible in the out-put range of 6W to 50W and enable easy design; (2)Small-sized package whose pin assignment is the same as that of the STK4101II series; (3)Built-in muting circuit to cut off various kinds of pop noise; (4)Greatly reduced heat sink due to substrate temperature 125℃ guaranteed; (5)Excellent cost performance.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 STK4182II |
Other |
|
Data Sheet |
Negotiable |
|
||||
