Product Summary
The SS3H10-E3/57T is a High Voltage Surface Mount Schottky Barrier Rectifier.
Parametrics

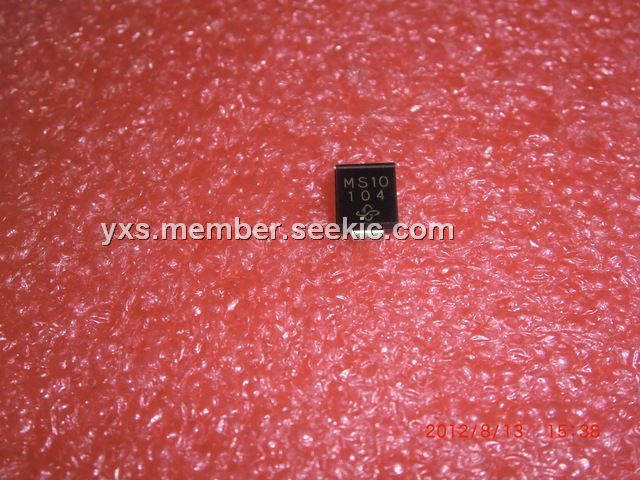

SS3H10-E3/57T absolute maximum ratings: (1)Device marking code: MS10; (2)Maximum repetitive peak reverse voltage, VRRM: 100 V; (3)Working peak reverse voltage, VRWM: 100 V; (4)Maximum DC blocking voltage, VDC: 100 V; (5)Maximum average forward rectified current: 3.0 A; (6)Peak forward surge current, IFSM: 100 A; (7)Peak repetitive reverse surge current, IRRM: 1.0 A; (8)Critical rate of rise of reverse voltage, dv/dt: 10,000 V/μs.
Features
SS3H10-E3/57T features: (1)Plastic package has Underwriters Laboratory Flammability Classification 94V-0; (2)Low profile surface mount package; (3)Built-in strain relief; (4)Low power loss, high efficiency; (5)For use in low voltage high frequency inverters, free wheeling, and polarity protection applications; (6)Guardring for overvoltage protection; (7)High temperature soldering guaranteed: 250℃/10 seconds at terminals.

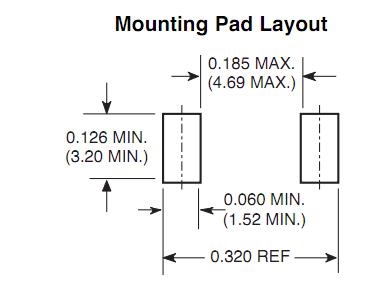

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SS3H10-E3/57T |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 3.0 Amp 100 Volt |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
SS3H10 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
SS3H10/57T |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 100 Volt 3.0 Amp 100 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
SS3H10/9AT |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 100 Volt 3.0 Amp 100 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
SS3H10-E3/57T |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 3.0 Amp 100 Volt |
Data Sheet |
|
|
||||||||||||
|
SS3H10-E3/59T |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 100 Volt 3.0 Amp 100 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
SS3H10-E3/9AT |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 100 Volt 3.0 Amp 100 Amp IFSM |
Data Sheet |
|
|
||||||||||||
