Product Summary
The MB90P224B is a general-purpose high-performance 16-bit microcontroller. It has been developed primarily for applications that demand high-speed real-time processing and is suited for industrial applications, office automation equipment, process control, and other applications. The MB90P224B is based on the F2MC-16 Family with improved high-level language support functions and task switching functions, as well as additional addressing modes.
Parametrics
MB90P224B absolute maximum ratings: (1)Power supply voltage, VCC:VSS – 0.3 to VSS + 7.0 V; (2)Program voltage, VPP: VSS – 0.3 to 13.0 V; (3)Analog power supply voltage, AVCC: VSS – 0.3 to VCC + 0.3 V; (4)Input voltage, VI:VSS – 0.3 to VCC + 0.3 V; (5)Output voltage, VO: VSS – 0.3to VCC + 0.3 V; (6)L level output current, IO: 20 mA; (7)Power consumption, PD: 650mW; (8)Operating temperature, TA: –40 to +105℃; (9)Storage temperature, Tstg: –55 to +150℃.
Features
MB90P224B features: (1)Minimum execution time: 62.5 ns/16 MHz oscillation (using a duty control system); (2)Instruction sets optimized for controllers; (3)Extended intelligent I/O service (automatic transfer function independent of instructions) Access area expanded to 64 Kbytes; (4)Enhanced instruction set applicable to high-level language (C) and multitasking; (5)Increased execution speed: 8-byte instruction queue; (6)Powerful interrupt functions: 8 levels and 28 sources.

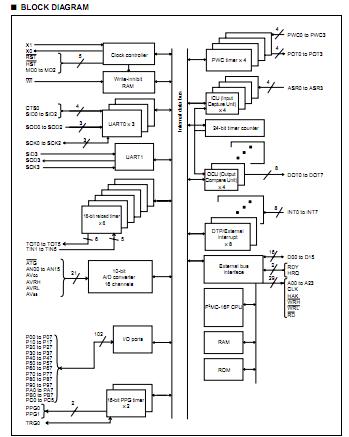

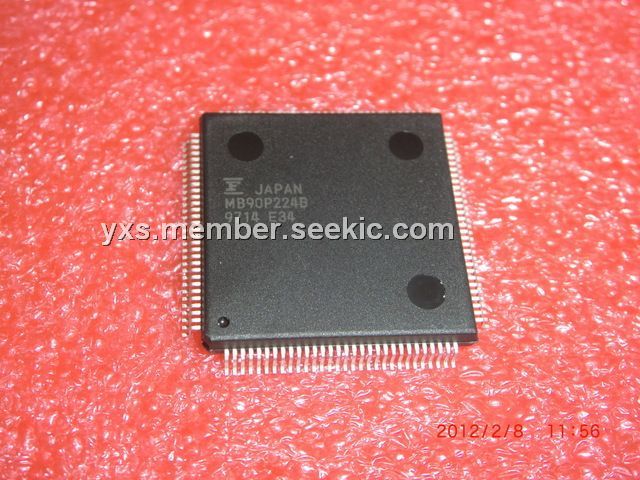

Diagrams
