Product Summary
The M57962K is a hybrid integrated circuit designed to provide optimum gate drive for IGBT modules. This device provides high current optically isolated gate drive with a large output voltage swing. The driver also provides short circuit protection based on desaturation detection. The applications of the M57962K are To drive IGBT modules for general industrial use apparatus.
Parametrics
M57962K absolute maximum ratings: (1)Supply Voltage, VCC: 18 Volts; VE: -15 Volts; (2)Input Voltage, VI: -1 ~ 7 Volts; (3)Output Voltage, VO: VCC Volts; (4)Output Current, IOHP: -5 Amperes; (5)Isolation Voltage, Viso: 3750 VRMS; (6)Case Temperature, Tc: 85℃; (7)Operating Temperature, Topr: -20 ~ 60℃; (8)Storage Temperature, tstg: -25 ~ 100℃; (9)Fault Output Current, IFO: 20 mA; (10)Input Voltage, VR: 50 Volts.
Features
M57962K features: (1)Electrical Isolation between input and output with opto-couplers. (Viso = 3750VRMS for 1 min.); (2)Two supply drive topology; (3)Built in short circuit protection circuit with a pin for fault output; (4)TTL compatible input interface.

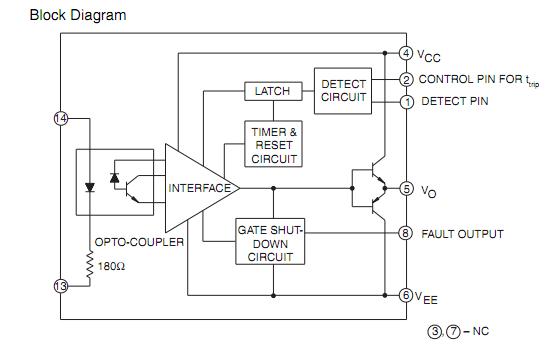

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

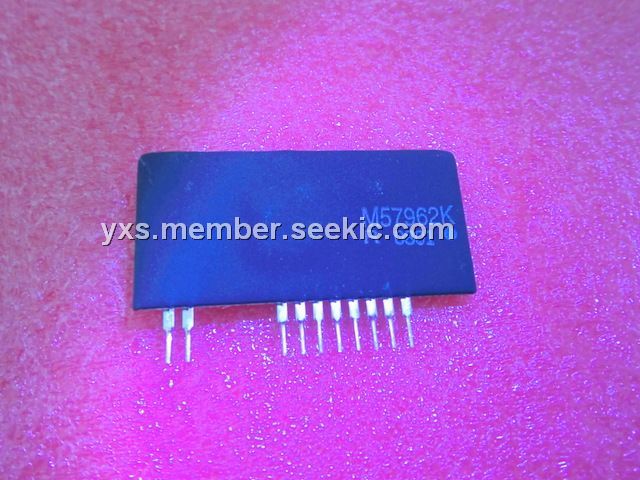

 M57962K-01R |
Other |
|
Data Sheet |
Negotiable |
|
||||
