Product Summary

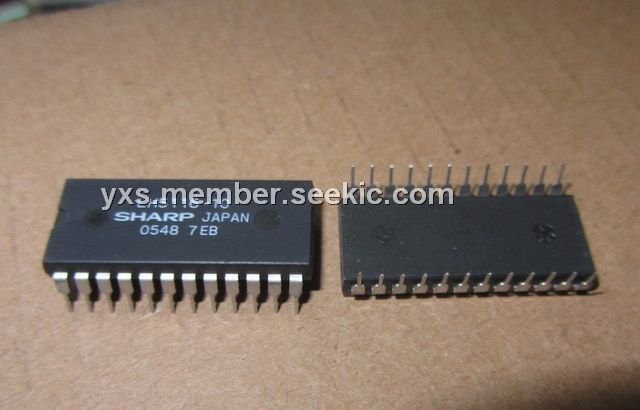

The LH5116-10 is a CMOS 16K (2K x 8) Static RAM, organized as 2,048 × 8 bits. The LH5116-10 is fabricated using silicon-gate CMOS process technology. The LH5116-10 features high speed access in read mode using output enable (tOE).
Parametrics
LH5116-10 absolute maximum ratings: (1)Supply voltage, VCC: -0.3 to +7.0 V; (2)Input voltage, VIN: -0.3 to VCC + 0.3 V; (3)Operating temperature, Topr: 0 to +70℃; (4)Storage temperature, Tstg: -55 to +150℃.
Features
LH5116-10 features: (1)2,048 × 8 bit organization; (2)Access time: 100 ns (MAX.); (3)Power consumption: Operating: 220 mW (MAX.); Standby: 5.5 mW (MAX.); (4)Single +5 V power supply; (5)Fully-static operation; (6)TTL compatible I/O; (7)Three-state outputs; (8)Wide temperature range available: -40 to +85℃; (9)Packages: 24-pin, 600-mil DIP; 24-pin, 300-mil SK-DIP; 24-pin, 450-mil SOP.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LH5116-10 |
|
IC SRAM 16KBIT 100NS 24DIP |
Data Sheet |
Negotiable |
|
||||
|
LH5116-10F |
|
IC SRAM 16KBIT 100NS 24DIP |
Data Sheet |
Negotiable |
|
||||
