Product Summary

The K8Q2815UQB-PI4B is a flash memory. The K8Q2815UQB-PI4B featuring single 3.0V power supply, is an 128Mbit NOR-type Flash Memory organized as 8M x16. The memory architecture of the device is designed to divide its memory arrays into 284 blocks with independent hardware protection. This block architecture provides highly flexible erase and program capability. The K8Q2815UQB-PI4B consists of eight banks. This device is capable of reading data from one bank while programming or erasing in the other banks.

Parametrics

K8Q2815UQB-PI4B absolute maximum ratings: (1)Voltage on any pin relative to VSS, VCC: -0.5 to +4.0V; (2)Temperature Under Bias, Tbias: -10 to +125℃; (3)Storage Temperature, Tstg: -65 to +150℃; (4)Short Circuit Output Current, IOS: 5mA; (5)Operating Temperature, TA: -40 to +85℃.

Features

K8Q2815UQB-PI4B features: (1)Erase Suspend/Resume; (2)Program Suspend/Resume; (3)Unlock Bypass Program; (4)Hardware RESET Pin; (5)Command Register Operation; (6)Block Protection / Unprotection; (7)Supports Common Flash Memory Interface; (8)Industrial Temperature: -40 to 85℃.

Diagrams

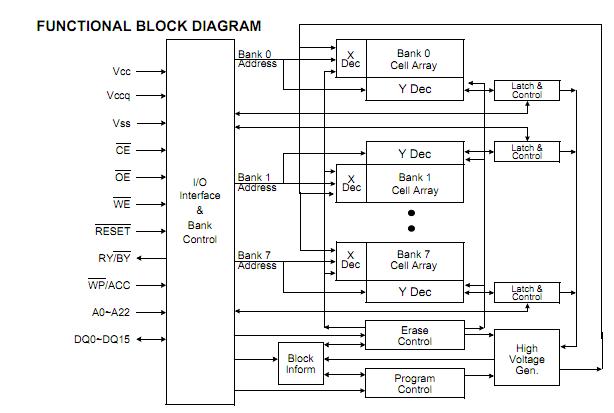

K8Q2815UQB-PI4B functional block diagram
