Product Summary

The FGA25N120 is a 1200V NPT Trench IGBT. It offers superior conduction and switching performances, high avalanche ruggedness and easy parallel operation.

Parametrics

FGA25N120 absolute maximum ratings: (1)Collector-Emitter Voltage:1200V; (2)Gate-Emitter Voltage:± 20V; (3)Collector Current: @ TC = 25℃:50A; (4)Collector Current:@ TC = 100℃:25A; (5)Pulsed Collector Current:90A; (6)Diode Continuous Forward Current:@ TC = 100℃:25A; (7)Diode Maximum Forward Current:150A; (8)Maximum Power Dissipation:@ TC = 25℃:312W; (9)Maximum Power Dissipation:@ TC = 100℃:125W; (10)Operating Junction Temperature:-55℃ to +150℃; (11)Storage Temperature Range:-55℃ to +150℃.

Features

FGA25N120 features: (1)NPT Trench Technology, Positive temperature coefficient; (2)Low saturation voltage: VCE(sat), typ = 2.0V @ IC = 25A and TC = 25℃; (3)Low switching loss: Eoff, typ = 0.96mJ @ IC = 25A and TC = 25℃; (4)Extremely enhanced avalanche capability.

Diagrams

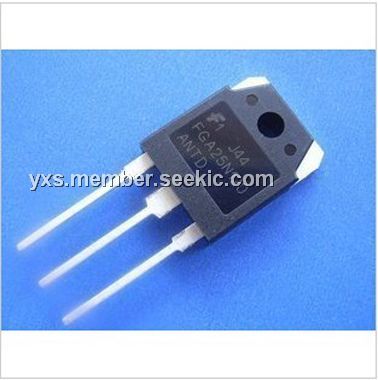

FGA25N120 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FGA25N120AN
FGA25N120AN
Other

Data Sheet
Negotiable
FGA25N120AND
FGA25N120AND
Other

Data Sheet
Negotiable
FGA25N120ANTDTU
FGA25N120ANTDTU
Fairchild Semiconductor
IGBT Transistors Copak Discrete
Data Sheet
0-1: $2.68
1-25: $2.42
25-100: $2.20
100-250: $1.99
FGA25N120ANTDTU_F109
FGA25N120ANTDTU_F109
Fairchild Semiconductor
IGBT Transistors Copak Discrete
Data Sheet
0-220: $2.11
220-250: $1.91
250-500: $1.72
500-1000: $1.45
FGA25N120ANDTU
FGA25N120ANDTU
Fairchild Semiconductor
IGBT Transistors Copak Discrete
Data Sheet
Negotiable
FGA25N120ANTD
FGA25N120ANTD
Other

Data Sheet
Negotiable
FGA25N120FTD
FGA25N120FTD
Fairchild Semiconductor
IGBT Transistors 1200V 25A Field Stop Trench
Data Sheet
0-1: $3.03
1-25: $2.67
25-100: $2.48
100-250: $2.24
FGA25N120ANTU
FGA25N120ANTU
Fairchild Semiconductor
IGBT Transistors 25A/1200V/NPT
Data Sheet
Negotiable
