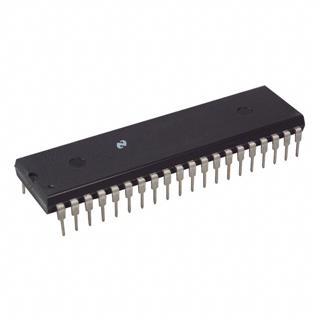

COP8SGE740N8

ROM and OTP based microcontroller, COP8SGE740N8, -0.3V to VCC +0.3V, PLCC44

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~60.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~60.00

PartNumber:: COP8SGE740N8

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:COP8SGE740N8
US $5.00 - 60.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

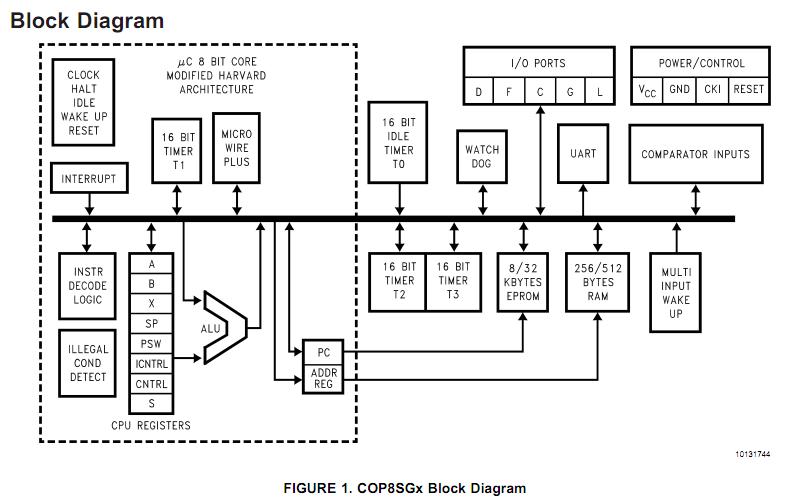

The COP8SGE740N8 is a ROM and OTP based microcontroller. It is a highly integrated COP8 Feature core device with 8k to 32k memory and advanced features including Analog comparators, and zero external components. The COP8SGE740N8 is suited for more complex applications requiring a full featured controller with larger memory, low EMI, two comparators, and a full-duplex USART. The COP8SGE740N8 is 100% form-fit-function compatible OTP (One Time Programmable) versions for use in production or development of the COP8SGx5 ROM.

Parametrics

COP8SGE740N8 absolute maximum ratings: (1)Supply Voltage(VCC): 7V; (2)Voltage at Any Pin: -0.3V to VCC +0.3V; (3)Total Current into VCC Pin (Source): 100 mA; (4)Total Current out of GND Pin (Sink): 110 mA; (5)Storage Temperature Range: -65 to +140℃; (6)ESD Protection Level: 2kV (Human Body Model).

Features

COP8SGE740N8 features: (1)Low cost 8-bit microcontroller; (2)Quiet Design (low radiated emissions); (3)Multi-Input Wakeup pins with optional interrupts (8 pins); (4)Mask selectable clock options; (5)Internal Power-On-Reset—user selectable; (6)WATCHDOG and Clock Monitor Logic—user selectable; (7)Eight high current outputs; (8)256 or 512 bytes on-board RAM; (9)8k to 32k ROM or OTP EPROM with security feature.
