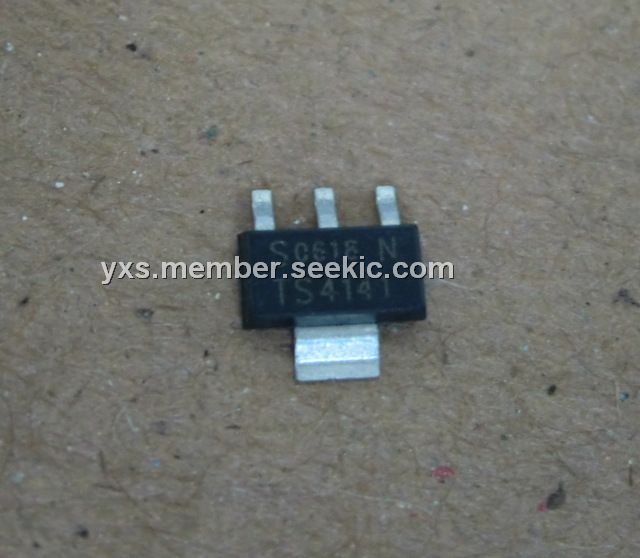

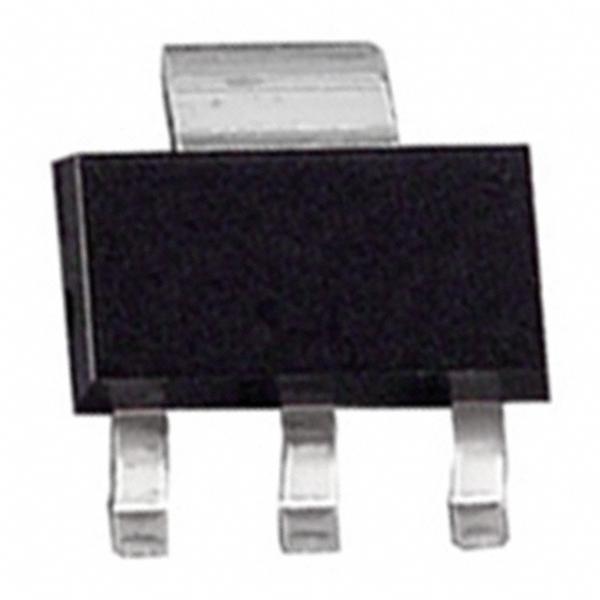

BTS4141N

smart high-side power switch, SOT223-4, 12 V, ±5 mA, 1.4 W, BTS4141N

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.65~1.85 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.65~1.85

PartNumber:: BTS4141N

Brand:: Infineon Technologies AG - Infineon | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-22

From Other Seller

Part Number:BTS4141N
US $0.65 - 1.85
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

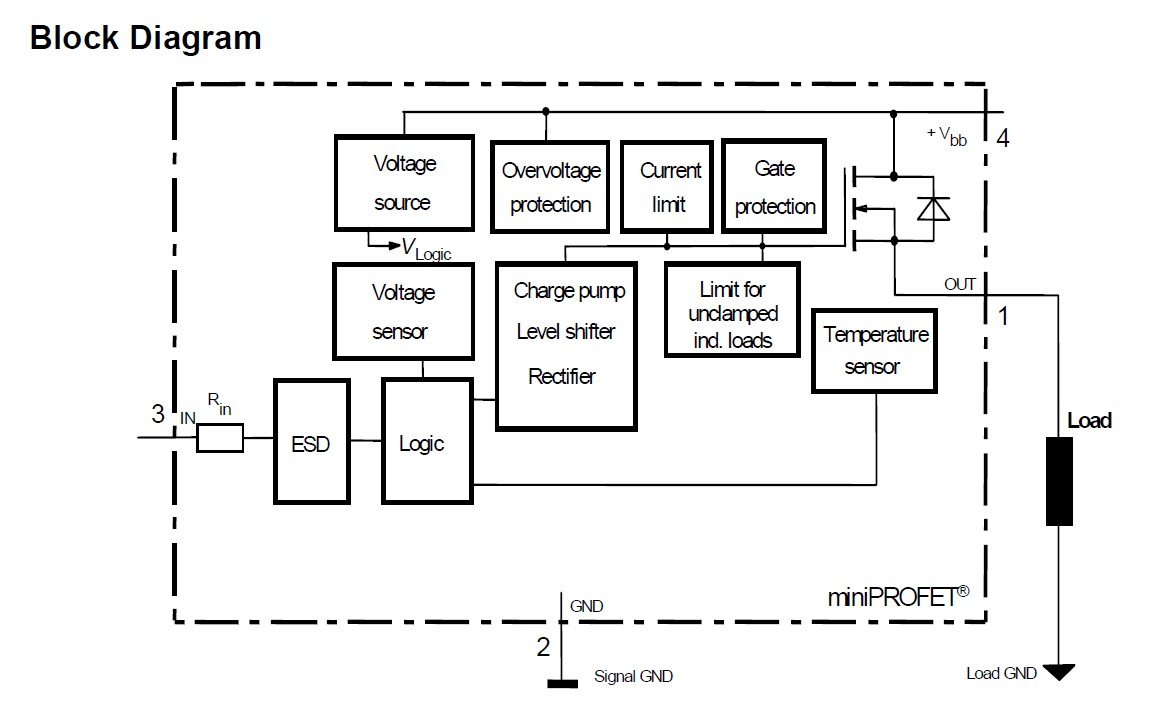

The BTS4141N is a smart high-side power switch. It is an N channel vertical power with charge pump, ground referenced CMOS compatible input. It is monolithically integrated in Smart SIPMOS technology. Providing embedded protective functions. The applications of the BTS4141N are: All types of resistive, inductive and capacitive loads; μC compatible power switch for 12 V and 24 V DC applications; Replaces electromechanical relays and discrete circuits.

Parametrics

BTS4141N absolute maximum ratings: (1)Supply voltage Vbb -0,31): 48 V; (2)Continuous input voltage2) VIN: -10Vbb; (3)Load current: IL self limited A; (4)Current through input pin (DC) IIN: ±5 mA; (5)Reverse current through GND-pin3) -IGND: -0.5 A; (6)Operating temperature Tj: internal limited ℃; (7)Storage temperature Tstg: -55 to +150℃; (8)Power dissipation Ptot: 1.4 W.

Features

BTS4141N features: (1)Short circuit protection; (2)Current limitation; (3)Overload protection; (4)Overvoltage protection (including load dump); (5)Undervoltage shutdown with autorestart and hysteresis; (6)Switching inductive loads; (7)Clamp of negative voltage at output with inductive loads; (8)CMOS compatible input; (9)Thermal shutdown with restart.
