Product Summary
The BD9883AF is a DC-AC invertrer control IC.
Parametrics
BD9883AF absolute maximum ratings: (1)supply voltage, VCC: 30V; (2)BST: 36V; (3)BST-ST voltage difference, BST-SW: 7V; (4)operating temperature range, Topr: -40 to 85℃; (5)storage temperature range, Tstg: -55 to 125℃; (6)power dissipation, PD: 550mW; (7)maximum junction temperature, Tjmax: 125℃.
Features
BD9883AF features: (1)36V high voltage process; (2)1ch control with half-bridge; (3)lamp current and voltage sense feed back control; (4)sequencing easily achieved with soft start control; (5)short circuit protection with timer latch; (6)under voltage lock out; (7)mode-selectable the operating or stand-by mode by stand-by pin.

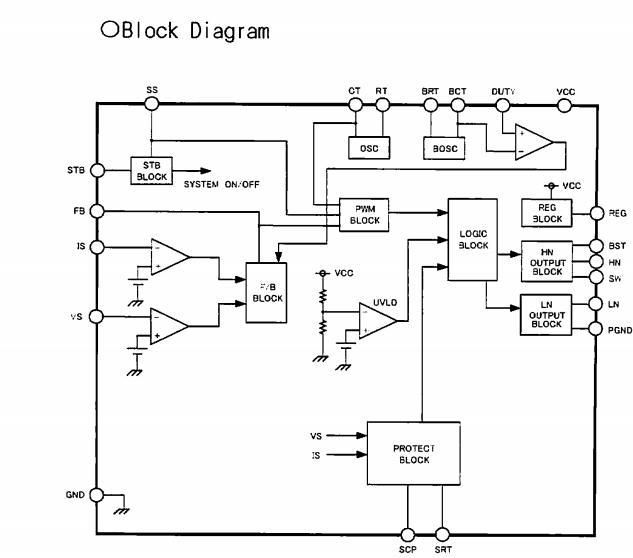

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BD9883AF |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
BD9883AF-E2 |
|
IC INVERTER CTLR DC-AC 20SOP |
Data Sheet |
|
|
||||||
