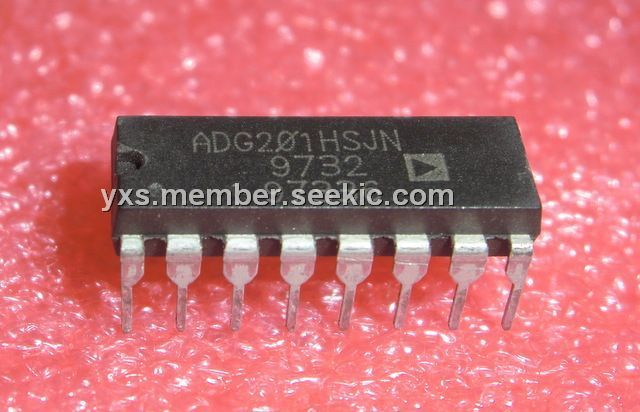

Product Summary

The ADG201HSJN is a nonolithic CMOS device comprising four independently selectable SPST switches. It is designed on an enhanced LC2MOS process which gives very fast swtiching speeds and low Ron.

Parametrics

ADG201HSJN absolute maximum ratings: (1)VDD to VSS: 44V; (2)VDD to GND: -0.3V, 25V; (3)VSS to GND: 0.3V, -25V; (4)analog inputs, votlage at S, D: VSS-2V to VDD+2V; (5)continuous current, S or D: 20mA; (6)power dissipation: 470mW; (7)operating temperature: -40 to 85℃; (8)storage temperature range: -65 to 150℃; (9)lead temeprature: 300℃.

Features

ADG201HSJN features: (1)500ns max switching time over full temperature range; (2)low Ron; (3)single supply specifications for 10.8V to 16.5V operation; (4)extended plastic temperature range; (5)break before make switching; (6)low leakage; (7)44V supply max rating.

Diagrams

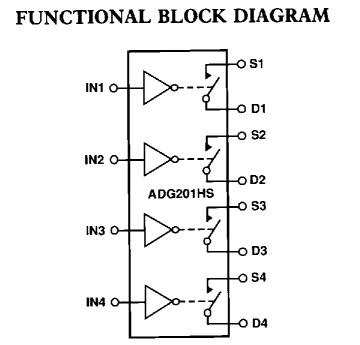

ADG201HSJN block diagram
