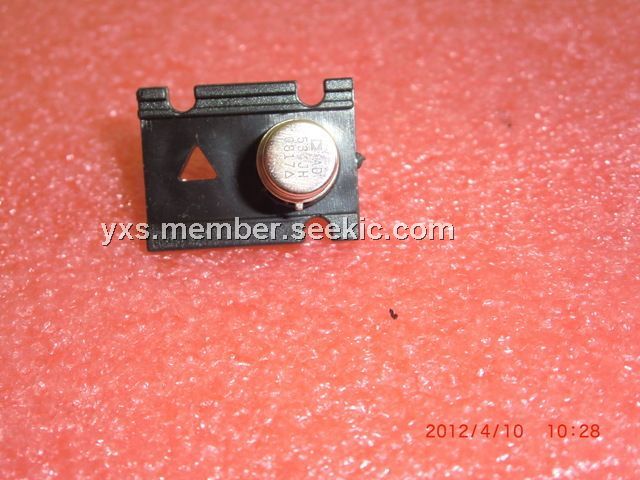

Product Summary

The AD534JH is a monolithic laser trimmed four-quadrant multiplier divider having accuracy specifications previously found only in expensive hybrid or modular products. A maximum multiplication error of ±0.25% is guaranteed for the AD534L without any external trimming. The applications of the AD534JH are (1)High Quality Analog Signal Processing; (2)Differential Ratio and Percentage Computations; (3)Algebraic and Trigonometric Function Synthesis; (4)Wideband, High-Crest rms-to-dc Conversion; (5)Accurate Voltage Controlled Oscillators and Filters; (6)Available in Chip Form.

Parametrics

AD534JH absolute maximum ratings: 1)Supply Voltage: ±18 V; (2)Internal PowerDissipation: 500 mW; (3)Output Short-Circuit to Ground: Indefinite; (4)Input Voltages, X1 X2 Y1 Y2 Z1 Z2: ±VS; (5)Rated Operating Temperature Range: 0 to +70℃; (6)Storage Temperature Range: –65 to +150℃; (7)Lead Temperature Range, 60 s Soldering: +300℃.

Features

AD534JH features: (1)Pretrimmed to 60.25% max 4-Quadrant Error (AD534L); (2)All Inputs (X, Y and Z) Differential, High Impedance for [(X1 – X2) (Y1 – Y2)/10 V] + Z2 Transfer Function; (3)Scale-Factor Adjustable to Provide up to X100 Gain; (4)Low Noise Design: 90 mV rms, 10 Hz–10 kHz; (5)Low Cost, Monolithic Construction; (6)Excellent Long Term Stability.

Diagrams

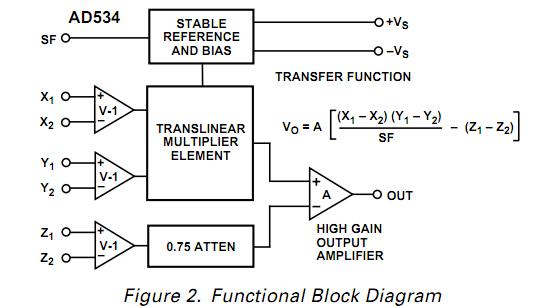

AD534JH block diagram
