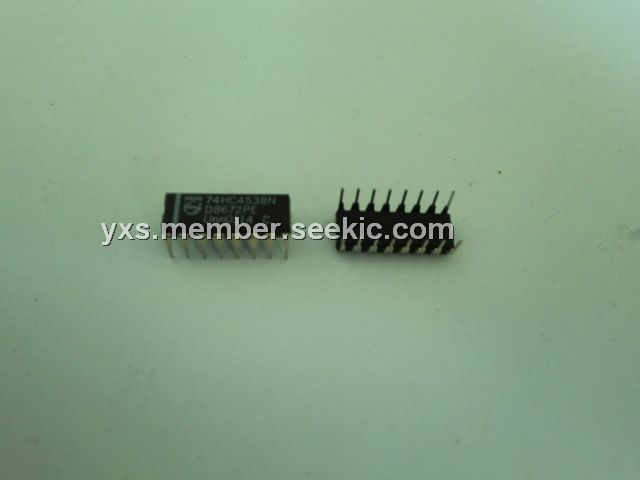

74HC4538N

Si-gate CMOS device, DIP, 2.0V, 74HC4538N, Philips

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.34~2.89 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.34~2.89

PartNumber:: 74HC4538N

Brand:: Philips Electronics India Limited - PHILIPS | Pack: DIP | D/C: 02+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-23

From Other Seller

Part Number:74HC4538N
US $1.34 - 2.89
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

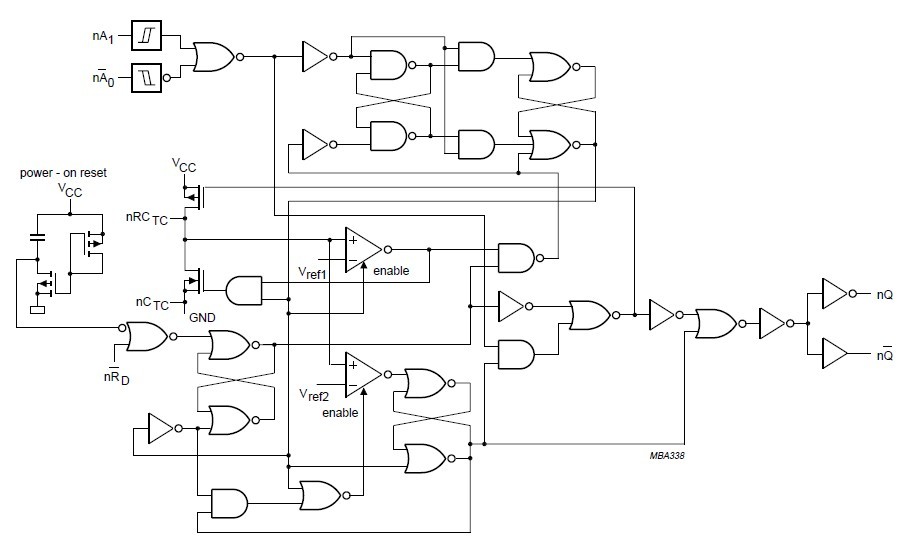

The 74HC4538N is a high-speed Si-gate CMOS device and is pin compatible with 4538 of the 4000B series. It is specified in compliance with JEDEC standard no. 7A. The 74HC4538N is dual retriggerable-resettable monostable multivibrator. Each multivibrator has an active LOW trigger/retrigger input (nA0), an active HIGH trigger/retrigger input (nA1) , an overriding active LOW direct reset input (nRD), an output (nQ) and its complement (nQ), and two pins (nCTC and nRCTC) for connecting the external timing components Ct and Rt.

Parametrics

74HC4538N characteristics: (1)tPLH propagation delay nA0, nA1 to nQ: Tamb=+25℃: typ=85ns, max=265ns; Tamb=-40 to +85℃: max=330ns; Tamb=-40 to +125℃: max=400ns; VCC: 2.0V; (2)tPHL propagation delay nA0, nA1 to nQ: Tamb=+25℃: typ=83ns, max=265ns; Tamb=-40 to +85℃: max=330ns; Tamb=-40 to +125℃: max=400ns; VCC: 2.0V; (3)tPHL propagation delay nRD to nQ: Tamb=+25℃: typ=80ns, max=265ns; Tamb=-40 to +85℃: max=330ns; Tamb=-40 to +125℃: max=400ns; VCC: 2.0V; (4)tPLH propagation delay nRD to nQ: Tamb=+25℃: typ=83ns, max=265ns; Tamb=-40 to +85℃: max=340ns; Tamb=-40 to +125℃: max=400ns; VCC: 2.0V.

Features

74HC4538N features: (1)Separate reset inputs; (2)Triggering from leading or trailing edge; (3)Output capability: standard; (4)ICC category: MSI; (5)Power-on reset on-chip.
