5KP40A

transient voltage suppressor, 5000 W, 600 A, 3.5 V, 5KP40A

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.20~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.20~2.50

PartNumber:: 5KP40A

Brand:: Vishay Siliconix - vishay | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-04

From Other Seller

Part Number:5KP40A
US $1.20 - 2.50
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

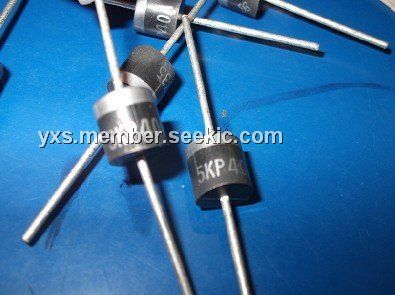

The 5KP40A is a transient voltage suppressor. The 5KP40A is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.

Parametrics

5KP40A absolute maximum ratings: (1)Peak pulse power dissipation with a 10/1000 μs waveform, PPPM: 5000 W; (2)Power dissipation on infinite heatsink, PD: 8.0 W; (3)Peak forward surge current 8.3 ms single half sine-wave, IFSM: 600 A; (4)Instantaneous forward voltage at 100 A, VF: 3.5 V; (5)Operating junction and storage temperature range, TJ, TSTG: - 55 to + 175℃.

Features

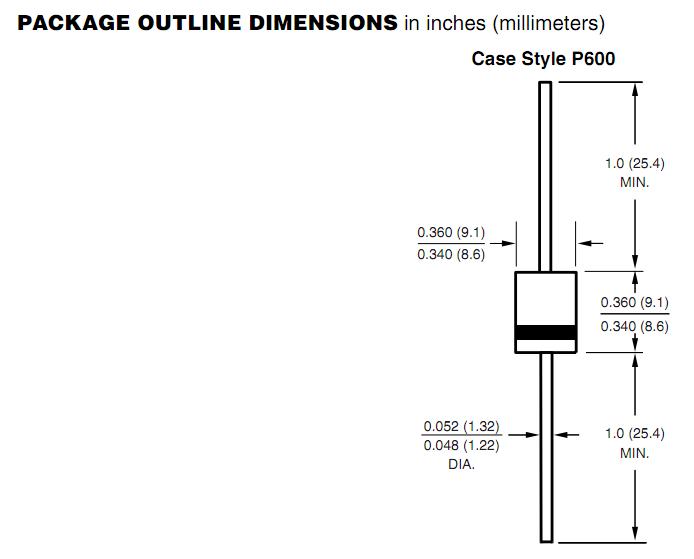

5KP40A features: (1)P600, glass passivated chip junction; (2)Available in uni-directional polarity only; (3)5000 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %; (4)Excellent clamping capability; (5)Very fast response time; (6)Low incremental surge resistance; (7)Solder dip 260℃, 40 s; (8)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
