Product Summary
The 2SK1381 is a Silicon N Channel MOS Type Field Effect Transistor. It is suitable for Relay Drive, Motor Drive and DC-DC Converter Applications.
Parametrics
2SK1381 absolute maximum ratings: (1)Drain-source voltage VDSS: 100 V; (2)Drain-gate voltage (RGS = 20 kΩ) VDGR: 100 V; (3)Gate-source voltage VGSS: ±20 V; (4)Drain current DC, ID: 50A; Pulse, IDP: 200 A; (5)Drain power dissipation (Tc = 25℃ PD: 150 W; (6)Channel temperature Tch: 150℃; (7)Storage temperature range Tstg: -55~150℃.
Features
2SK1381 features: (1)4-V gate drive; (2)Low drain-source ON resistance: RDS (ON) = 25 mΩ (typ.); (3)High forward transfer admittance: |Yfs| = 33 S (typ.); (4)Low leakage current: IDSS = 100 μA (max) (VDS = 100 V); (5)Enhancement mode: Vth = 0.8~2.0 V (VDS = 10 V, ID = 1 mA).

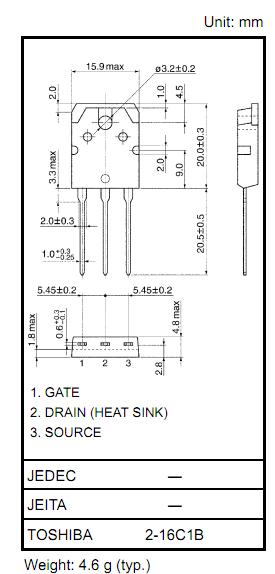

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

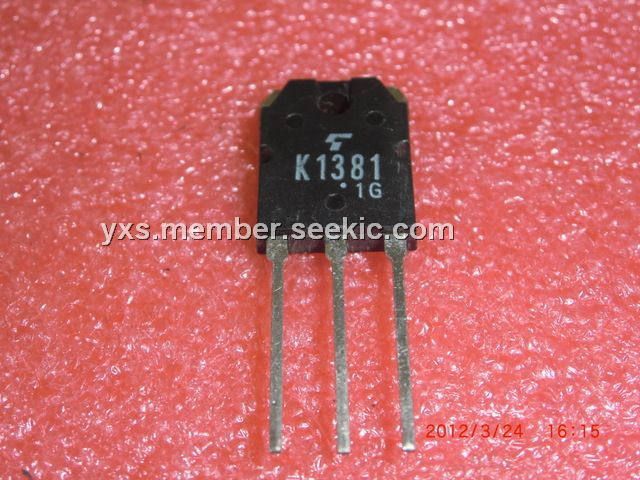

 2SK1381 |
|
MOSFET N-CH 100V 50A TO-3PN |
Data Sheet |
Negotiable |
|
||||||
|
2SK1381(F) |
|
MOSFET N-CH 100V 50A TO-3PN |
Data Sheet |
|
|
||||||
