Product Summary

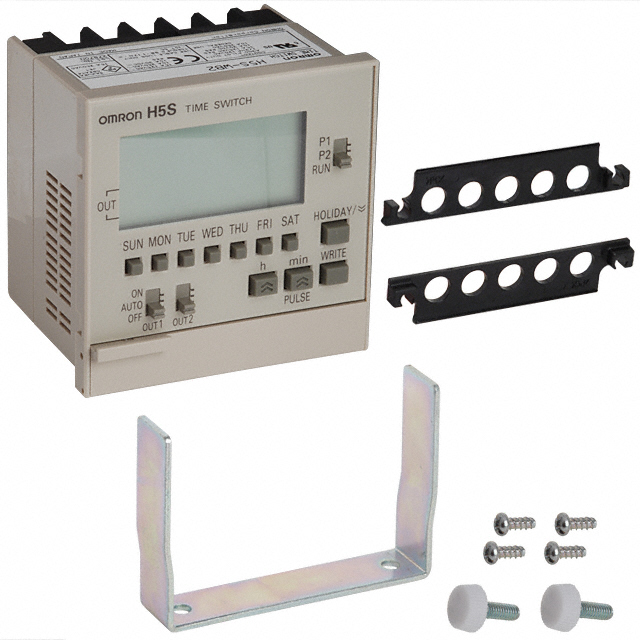

The H5S-B is a weekly timer.
Parametrics
H5S-B absolute maximum ratings: (1)Supply voltage: 100 to 240 V, 50/60 Hz; (2)Operating voltage 85 to 110% of rated voltage (85 to 264 VAC), 50/60 Hz; (3)Timing functions ON and OFF programming; (4)Reset (boot) input No-voltage, 0.2 sec minimum; (5)Repeat accuracy: ±0.01%, ±0.05 second max.; (6)Long-term error: ±15 seconds per month at 25°C (77°F); ±4 seconds/week, ±1 minute/4 months; (7)Operating ambient temperature: -10° to 55°C (14° to 131°F); (8)Humidity 35 to 85% RH.
Features
H5S-B features: (1)AM/PM display; (2)24 program steps; (3)A different program possible each day; (4)Over midnight settings possible; (5)Two independent 15 A control circuits with manual override; (6)Automatic or manual operation following power failure; (7)Field-adjustable ON/OFF, cycle and pulse output; (8)Easy-to-use prompted programming; (9)Wide supply voltage range; (10)Battery backup for memory protection; (11)Protective cover and other accessories may be ordered separately.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 H5S-B |
Omron Industrial |
Stopwatches & Timers PANEL MT WEEKLY |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
H5S-B |
Omron Industrial |
Stopwatches & Timers PANEL MT WEEKLY |
Data Sheet |
Negotiable |
|
||||||||||||
|
H5S-FB |
Omron Industrial |
Stopwatches & Timers TRACK MNT WEEKLY |
Data Sheet |
Negotiable |
|
||||||||||||
|
H5S-WB2 |
Omron Industrial |
Stopwatches & Timers PANEL MOUNT WEEKLY |
Data Sheet |
|
|
||||||||||||
 |
H5S-WB2D |
Omron Industrial |
Stopwatches & Timers Timer |
Data Sheet |
|
|
||||||||||||
|
H5S-WFB2 |
Omron Industrial |
Stopwatches & Timers TRACK MOUNT WEEKLY |
Data Sheet |
|
|
||||||||||||
 |
H5S-WFB2D |
|
TIME SWITCH DGTL WEEK 2CIRC DIN |
Data Sheet |
|
|
||||||||||||
