Product Summary
The ZP7 800-(2400V~3400V) is a General Purpose Rectifier. The applications of the ZP7 800-(2400V~3400V) include High power drive, High voltage supplies, Motor control.
Parametrics
ZP7 800-(2400V~3400V) absolute maximum ratings: (1)V RRM: 2400 to 3400 V; (2)I F(AV): 850 A; (3)I FSM: 10.8 kA; (4)V FO: 0.88 V; (5)r F: 0.613mΩ.
Features
ZP7 800-(2400V~3400V) features: (1)Double-side cooling; (2)High mean current; (3)High surge current.

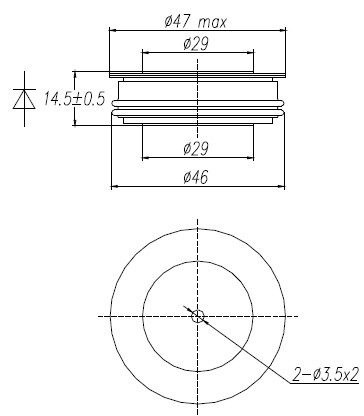

Diagrams
