Product Summary

The Y45KPC is a phase control thyristor. Its applications include AC controllers, DC and AC motor control, controlled rectifiers.

Parametrics

Y45KPC absolute maximum ratings: (1)mean on-state current: 1360A; (2)repetitive peak off-state voltage: 1000V; (3)repetitive peak current: 60mA; (4)surge on-state current: 20KA; (5)threshold voltage: 0.88V; (6)reverse recovery current: 125A; (7)recovery charge: 125μC; (8)holding current: 250mA; (9)stored temperature: -40 to 140℃.

Features

Y45KPC features: (1)center amplifying gate; (2)metal case with ceramic insulator; (3)low on-state and switching losses.

Diagrams

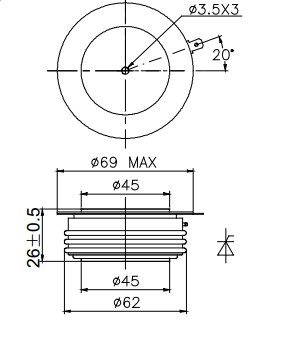

Y45KPC outline
