Product Summary

The MTC1000A/1600V is a thyristor. Its applications include Motor starters, DC motor controls - AC motor controls and Uninterruptable power supplies.

Parametrics

MTC1000A/1600V absolute maximum ratings: (1)IT(AV) or IF(AV) TC=85℃: 1000A; (2)ITSM 50Hz TJm=125℃: 20000A; (3)IFSM 60Hz TJm=125℃: 21320A; (4)I2t 50 Hz TJm=125℃: 2000kA2S; (5)I2t 60Hz TJm=125℃: 1886kA2S; (6)VRRM: 800 to 1600V; (7)Tstg: -40 to 125℃; (8)TJ: -40 to 125℃.

Features

MTC1000A/1600V features: (1)High voltage; (2)Industrial standard package; (3)Low thermal resistance; (4)Designed and qualified for industrial level; (5)Excellent thermal performances obtained by the usage of exposed direct bonded copper substrate; (6)High surge capability; (7)Easy mounting on heatsink.

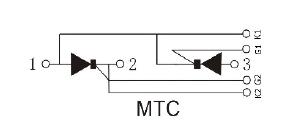

Diagrams

MTC1000A/1600V package dimensions
