Product Summary
The MDC200A/1600V is a dual diode power module. Its applications include High Voltage Power Supplies, Motor Control, Battery Chargers and Resistance Welding.
Parametrics
MDC200A/1600V absolute maximum ratings: (1)URRM: up to 1600 V; (2)IF(AV): 200 A; (3)IFSM: 5500 A.
Features
MDC200A/1600V features: (1)electrically isolated base; (2)high current capabilities; (3)high surge current capabilities; (4)high rates voltages; (5)low thermal impedance (Aluminium Nitride Insulators); (6)tested according to IEC standards; (7)compact size and small weight.

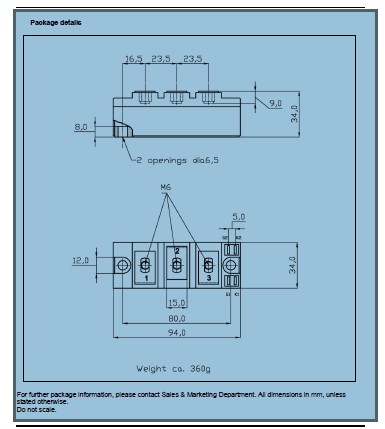

Diagrams
