Product Summary
The KP5800A/1600V is a 5000W Transient Voltage Suppressor.
Parametrics
KP5800A/1600V absolute maximum ratings: (1)Peak power dissipation with a 10/1000μs waveform (Note 1): 5000 W; (2)Peak forward surge current, 8.3ms single half sine-wave unidirectional only (Note 2)IFSM: 500 A; (3)Operating junction and storage temperature range TJ, TSTG: 55 to +150°C; (4)Power dissipation on infinite heatsink at TL=75°C PD: 8.0 W; (5)Maximum instantaneous forward voltage at 100A for uni-directional devices only (Note 3)VF: 3.5 / 5.0 V.
Features
KP5800A/1600V features: (1)Glass passivated chip.; (2)Low leakage.; (3)Uni and Bidirection unit.; (4)Excellent clamping capability.; (5)The plastic material has UL recognition 94V-0.; (6)Fast response time..

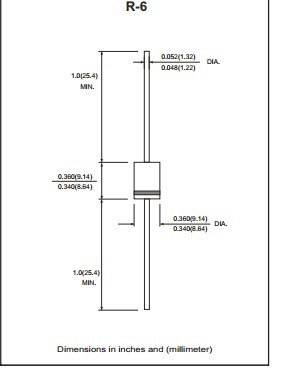

Diagrams
