Product Summary
The K2CU-F10A-E is a heater element burnout detector.
Parametrics
K2CU-F10A-E absolute maximum ratings: (1)Control supply voltage: 100, 110, 200, 220 VAC; (2)Rated frequency: 50/60 Hz; (3)Operating voltage range: 85% to 110% of control supply voltage; (4)Voltage fluctuation compensation range: 85% to 110% of control supply voltage; (5)Operating current: 4 to 10 A, 8 to 20 A, 16 to 40 A, 32 to 80 A; (6)Releasing current: 105% max. of operating current; (7)Operate time: 0.5 s max. (when current changes from 150% to 0%); (8)Gate input voltage range (for models with gate input terminals): 5 to 30 VDC.
Features
K2CU-F10A-E features: (1)Accurately detects a burned heater element or elements incorporated by a molding machine or packing machine and outputs an alarm signal; (2)Precisely singles out the burned element even if one heater element among several heater elements has been burned out; (3)Applicable to small- to large-capacity heater elements; (4)All K2CU-F large-capacity, built-in current transformer models work with both single-phase and three-phase heaters; (5)Voltage fluctuation compensation function eliminates false alarms due to variations in the supply voltage.

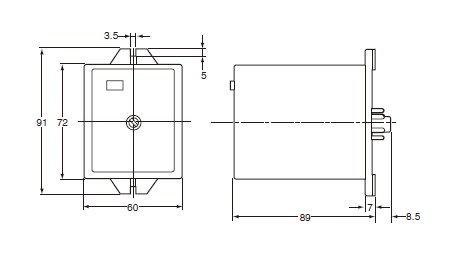

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 K2CU-F10A-E-AC4-10A-AC200 |
Omron Industrial |
Detector Switches Heater Fault Detector |
Data Sheet |
|
|
||||||||||||
|
K2CU-F10A-EGS |
Omron Industrial |
Detector Switches Heater Fault Detector |
Data Sheet |
|
|
||||||||||||
